Beyond Encryption: Why Your Memory Access Patterns Are Leaking Everything

TLDR: Even when data is encrypted at rest and in transit, the sequence of memory accesses made by a processor can leak sensitive information. This talk demonstrates how side-channel attacks exploit these patterns to reconstruct private data, such as images or contact lists, and introduces Path ORAM as a practical, high-performance defense. For researchers and developers, this means that standard encryption is no longer sufficient for protecting sensitive computations in shared or untrusted environments.

Encryption is the industry standard for data protection, but it has a massive blind spot. We spend years perfecting AES implementations and TLS configurations, yet we often ignore the physical reality of how a CPU interacts with memory. When a program performs a lookup in an encrypted database, the specific memory addresses it touches are not encrypted. They are visible to anyone with access to the system bus or the ability to monitor cache hits and misses. This is not a theoretical concern for academic papers; it is a fundamental architectural vulnerability that turns your memory controller into an information leak.

The Mechanics of Access Pattern Leakage

Consider a simple binary search algorithm. Even if the array being searched is fully encrypted, the sequence of indices accessed by the CPU reveals the rank of the target value. If you are searching for a value in a sorted list, the first access is always the middle element. Depending on whether the target is smaller or larger, the next access is the middle of the left or right half. By observing these access patterns, an attacker can determine the target value with high precision, completely bypassing the encryption layer.

This issue is not limited to search algorithms. Researchers have demonstrated that even coarse-grained access patterns in image processing software can be used to reconstruct the shape and location of objects within a JPEG image. When a program branches based on a secret key, the memory traces of those branches become a side channel. If your code contains a conditional statement that depends on a secret variable, you are likely leaking that secret through your memory access patterns.

Bridging the Gap with Path ORAM

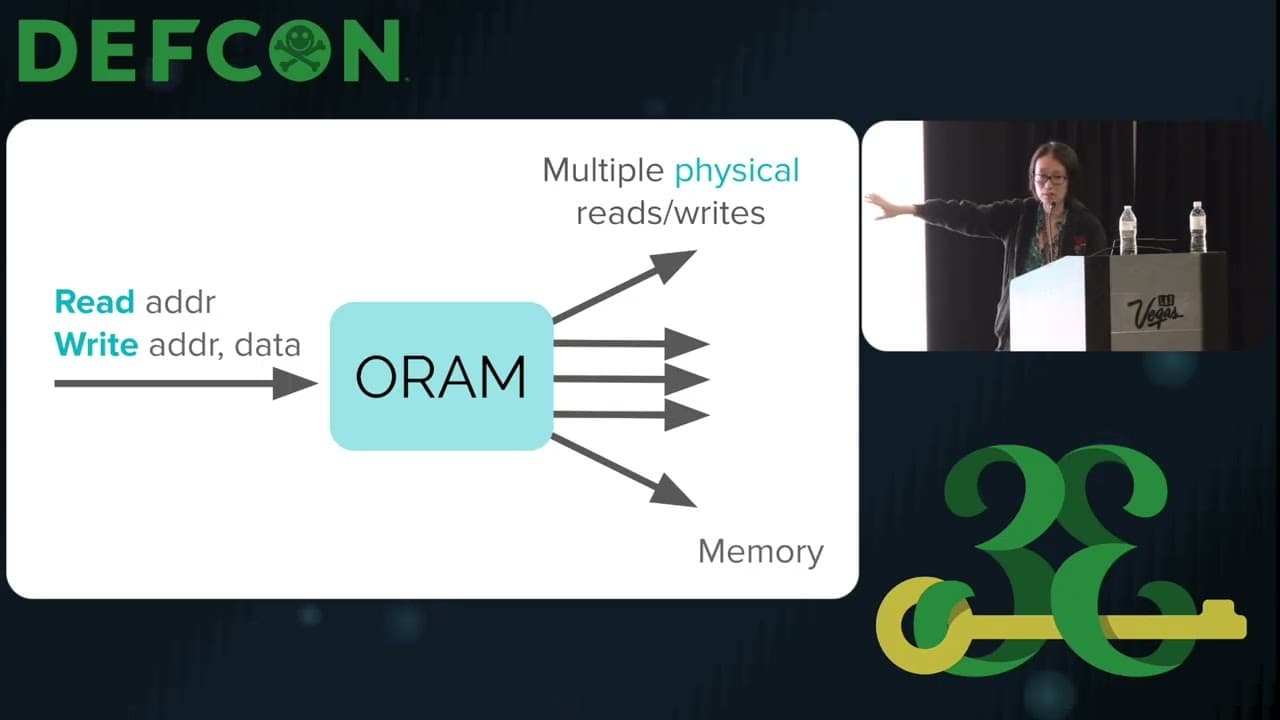

Oblivious RAM (ORAM) is the algorithmic solution to this problem. It works by shuffling and permuting data in memory so that the physical access pattern is statistically independent of the logical access request. The goal is to ensure that an observer sees the same distribution of memory accesses regardless of whether you are reading the first record or the last.

The Path ORAM construction is particularly significant because it moves ORAM from the realm of "theoretically interesting but too slow to use" to "production-ready." It organizes data into a binary tree where each node is a bucket with a fixed capacity. Every time a block is accessed, it is remapped to a new, randomly chosen path in the tree. To prevent the tree from overflowing, an eviction process moves blocks toward the leaves. Because the path is chosen randomly and the block is relocated after every read, an attacker cannot correlate physical memory accesses with logical data requests.

For a pentester, encountering ORAM in the wild is rare, but it is becoming a critical component in high-security environments. If you are auditing a system that uses Trusted Execution Environments (TEEs) to process sensitive data, you should look for whether the implementation accounts for memory access patterns. If the application performs complex operations on encrypted data inside an enclave without ORAM, it is likely vulnerable to side-channel analysis.

Practical Implementation and Future Directions

The performance overhead of ORAM has historically been the primary barrier to adoption. However, modern implementations have reached a point where they can handle hundreds of thousands of queries per second on a single machine with microsecond-level latency. This efficiency makes it viable for protecting sensitive operations like private contact discovery in messaging apps or preventing front-running in blockchain transaction processing.

The research community is now moving toward Oblivious STL, which aims to provide a standard library of data structures and algorithms that are inherently oblivious. Instead of forcing developers to manually implement ORAM for every data structure, this approach allows them to use familiar abstractions like maps, sets, and priority queues that automatically handle the necessary shuffling and permutation.

Defenders should recognize that ORAM is not a silver bullet for all side-channel issues. It specifically addresses memory access patterns. It does not protect against power analysis or timing attacks that occur at the instruction level. However, for applications where data privacy is paramount, ORAM is the only way to ensure that the physical behavior of your software does not betray the secrets it is supposed to protect.

If you are building systems that handle high-value data, stop assuming that encryption is the end of the conversation. Start looking at your memory traces. If your access patterns are predictable, they are exploitable. The tools to fix this are finally becoming available, and the next generation of secure applications will be built on the assumption that the observer can see everything except the data itself.
